Package

How to download and install pydagroas

Warning

It is good practice to install into a virtual env

To download the package from pypi and install into site-apckages use

pip install pydagoras

To download and install a particular version from github use

pip install git+https://github.com/MarkHallett/pydagoras@v0.0.7

How to use

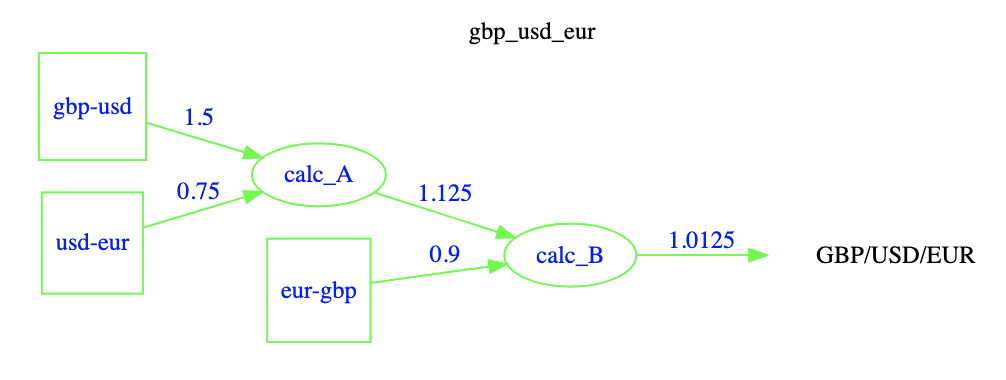

The code below will create the DAG in the diagram below. basic_dag

Creating the nodes

within a class derived from pydagoras.DAG first define the calculation within the nodes, then create the nodes.

defining the DAG
# output node
self.o = self.makeNode(label='GBP/USD/EUR',
                       calc=None,usedby = [],
                       nodetype='out')

# internal nodes
self.i1 = self.makeNode(label='calc_B',
                        calc=self.calcRateB,
                        usedby=[self.o], nodetype='internal')

self.i2 = self.makeNode(label='calc_A',
                        calc=self.calcRateA,
                        usedby=[self.bb], nodetype='internal')

# input nodes
self.a = self.makeNode(label='gbp-usd',
                       calc=None,usedby=[self.i2],
                       nodetype='in')

self.b = self.makeNode(label='usd-eur',
                       calc=None,usedby=[self.i2],
                       nodetype='in')

self.c = self.makeNode(label='eur-gbp',
                       calc=None,usedby=[self.i1],
                       nodetype='in')

Defining node calculations

node calculations
1
2
3
4
5
6
7
@dag_dot.calc
def calcRateA(self, node=None):
    return self.a.value * self.b.value

@dag_dot.calc
def calcRateB(self, node=None):
    return self.i.value * self.c.value

Updating nodes

updating nodes
1
2
3
my_dag.set_input('a',1.5)
my_dag.set_input('b',0.75)
my_dag.set_input('c',0.9)

DAG output

DAG output value
my_dag.o.value
